GN500-03 high temperature wire 500 degrees

Product Name:

GN500-03 high temperature wire 500 degrees

Number :

Product Description:

GN500-03 high temperature wire 500 degrees

Product Features:

1, Rated voltage: 300 / 500V

2, Working temperature: -60 ~ + 500 ℃

3, Conductor: stranded pure nickel wire

4, insulation: fiberglass weave + fluorine gold mica

5, Color: Red / yellow / blue / white / black / green and yellow / brown / orange / purple / green / etc.

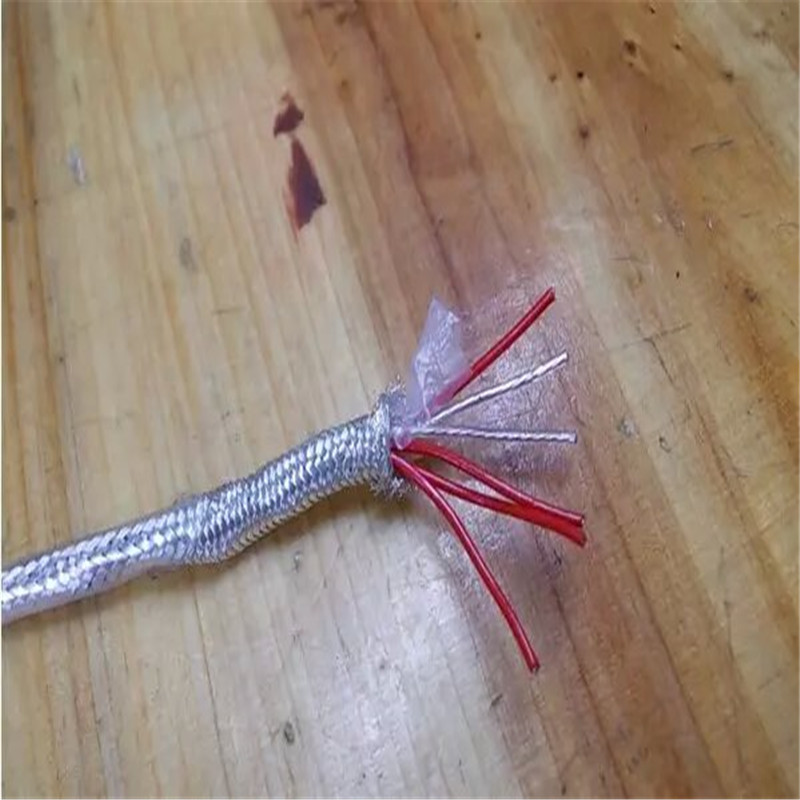

GN500-03 high temperature wire 500 degrees

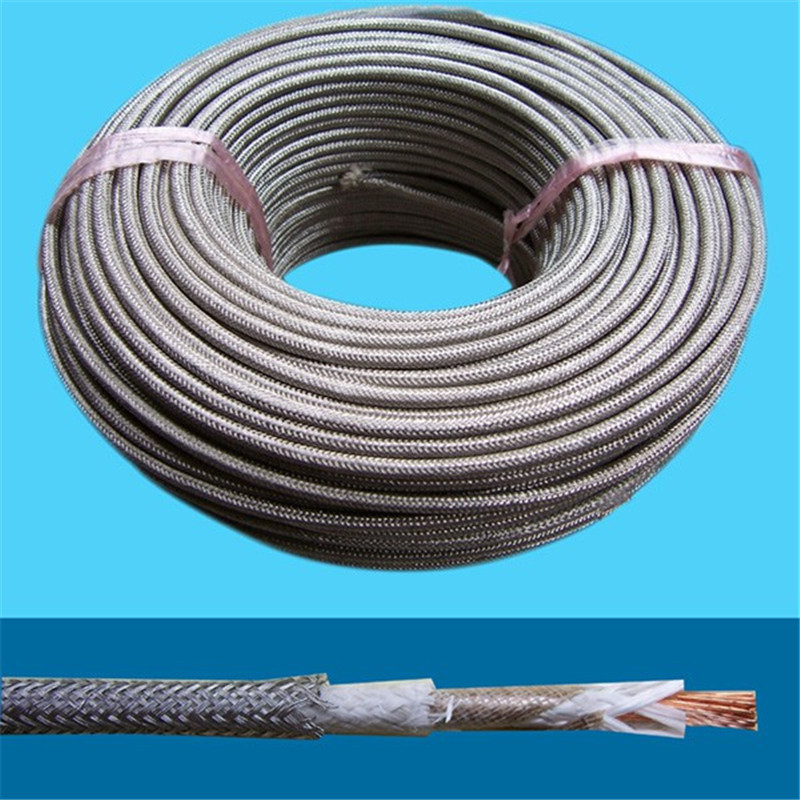

Mica Fiberglass High Temperature Heat Resistance Wire Cable
AWG Size	Conductor Structure	Insulation Thickness mm	Braid Thickness mm	Diameter mm	Ref.
					weight
					kg/km
24	7/0.20	≥0.63	≥0.18	2.3±0.20	9.1
22	7/0.254	≥0.63	≥0.18	2.4±0.20	12.2
20	10/0.254	≥0.63	≥0.18	2.6±0.20	14.9
18	16/0.254	≥0.63	≥0.18	2.8±0.20	18.1
16	26/0.254	≥0.63	≥0.18	3.2±0.20	24.2
14	41/0.254	≥0.63	≥0.18	3.6±0.20	34.5
12	65/0.254	≥0.63	≥0.18	4.2±0.20	46.3
10	103/0.254	≥0.76	≥0.38	5.2±0.20	77.6
8	163/0.254	≥0.76	≥0.38	6.6±0.20	116.2
