Product models: AGR

Product features:

Rated voltage: 300/500V

Working temperature: -60 ~ 200 ℃,

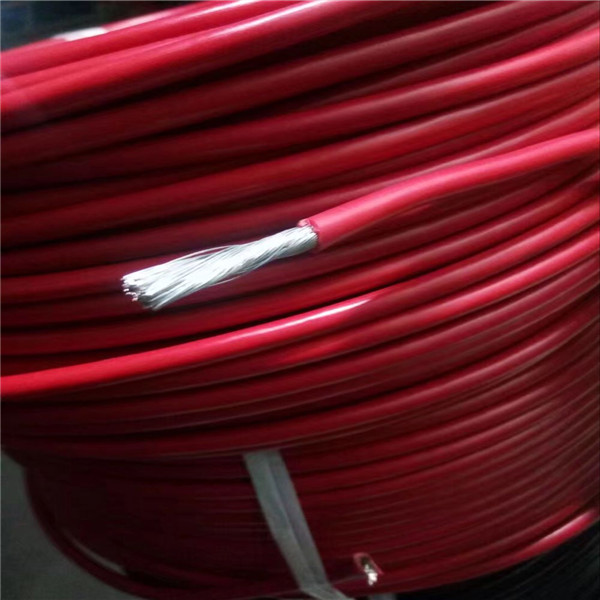

Construction:

conductor: solid or stranded tinned copper wire,

insulation: silicon rubber,

color: red/yellow/blue/white/black/green/brown





Characteristic:

it has excellent high temperature &low temperature resistance, excellent electrical insulation properties, excellent chemical stability,
high voltage resistance, ageing resistance, long service life.And soft, easy to install.





Application:

Widely used in lighting, household appliances, electric appliances, instrument, electrical and electronic wiring, lamps and lanterns,
burner and high temperature environment.




 30AWG Insulated Silver Plated  Copper Single Core Cable

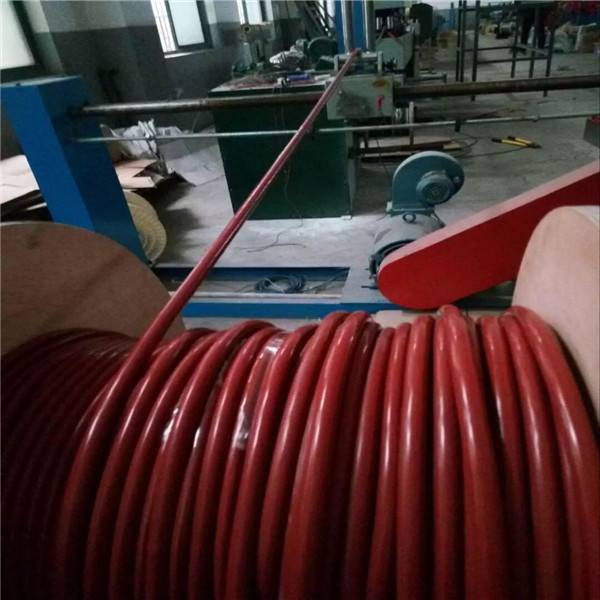

Silicone Single Core Stranded Cable
AWG	No. of Cores	Conductor cross section	Nominal OD	Copper weight	Gross Weight
		mm2	mm	kg/km	kg/km
24	1	0.25	1.9	2.4	5.5
20	1	0.5	2.1	4.8	8.6
18	1	0.75	2.4	7.2	11.8
17	1	1	2.5	9.6	13.5
16	1	1.5	2.8	14.4	18.5
14	1	2.5	3.4	24	30
12	1	4	4.2	38	47.3
10	1	6	5.2	58	71.1
8	1	10	7.1	96	119.4
6	1	16	8.4	154	187.7
4	1	25	10.3	240	289.6
2	1	35	11.6	336	398.3
1	1	50	13.9	480	559.7
2/0	1	70	16	672	765.8
3/0	1	95	18.4	912	1031.5
4/0	1	120	20	1152	1284.6
