Product Name:

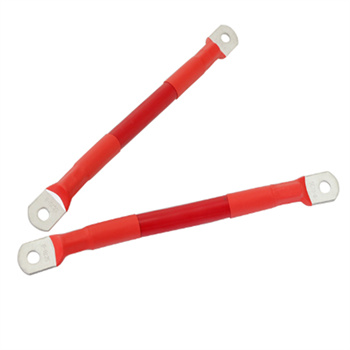

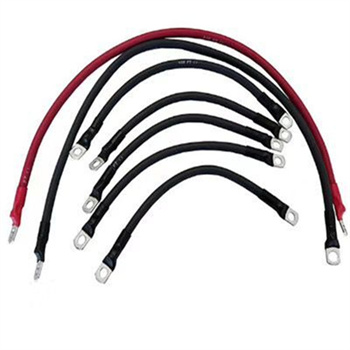

24Inch 6 Gauge 5/16inch Battery Cable Manufacture
Number :
 |
Application
battery cable is often used in main power applications in small cars, RV trailers, golf carts, and small marine crafts.
Also great for smaller solar cable applications.
Be aware that the total length of both the positive and negative cables have to be considered
Construction
conductor: 99.9% pure copper strands wire
insulation: PVC
The average outside diameter of the cable is approximately 0.330 inches.
Rated for low voltage and battery use up to 60 volts DC and 25 Volts AC.
The internal copper stranded core is highly conductive maximizing current flow while still being highly flexible.
| Technical Data of DC Battery Cables | |
| Cable Type | BVR |
| Popular Size | 10mm,16mm,25mm,35mm,50mm |
| Gauge | 8AWG, 6AWG, 4AWG, 2AWG, 1AWG |
| Conductor | 99.7% Stranded Bare Copper |
| Insulation Material | PVC |
| Standard | GB/T 19666-2005, JB/T8734.2-2006 |
| Rated Voltage | 450V/750V |
| Diameter of Lug’s Aperture | M6,M8,M10 |
| Temperature | 70℃ |
| Color | Black,Red |
| Length | 20/30/40/50/60/80/100 cm and customized |
| Lug installation method | Crimping |
| Application | Used for connection of car battery, battery, inverter, etc. |
|
Conductor Section-area (AWG) |
Core No. /Dia. (No./mm) |
Nominal thickness of sheath (mm) |
Overall Diameter |
Max. d.c. resistance at 20°c (Ω/km) |
Approx. Weight (kg/km) |
||
|
|
|
|
Min. |
Max. |
|
YH |
YHF |
|
8 |
322/0.20 |
1.8 |
7.5 |
9.7 |
1.91 |
146 |
153.51 |
|
6 |
513/0.20 |
2 |
9.2 |
11.5 |
1.16 |
218.9 |
230.44 |
|
4 |
798/0.20 |
2 |
10.5 |
13 |
0.758 |
316.6 |
331.15 |
|
2 |
1121/0.20 |
2 |
11.5 |
14.5 |
0.536 |
426 |
439.87 |
|
1/0 |
1596/0.20 |
2.2 |
13.5 |
17 |
0.379 |
592.47 |
610.55 |
|
2/0 |
2214/0.20 |
2.4 |
15 |
19.5 |
0.268 |
790 |
817.52 |
|
3/0 |
2997/0.20 |
2.6 |
17 |
22 |
0.198 |
1066.17 |
1102.97 |
Advantages:
High purity oxygen-free copper core
Using high purity oxygen-free copper core, anti-oxidation, stable conductivity
Environmental protection and safety, non-toxic and harmless
Selected PVC materials, safe and environmentally friendly, non-toxic and tasteless
Using tinned copper lug
Not easy to oxidize, long use time, good conductivity
Welding method: Lug and wires are more secure and not easy to fall off
