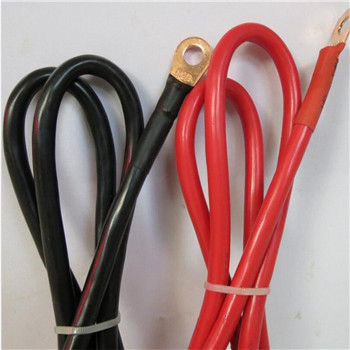

Welding Cable Red Black 6 AWG GAUGE COPPER WIRE BATTERY SOLAR LEADS

Product Name:

Welding Cable Red Black 6 AWG GAUGE COPPER WIRE BATTERY SOLAR LEADS

Number :

Product Description:

Welding Cable Red Black 6 AWG GAUGE COPPER WIRE BATTERY SOLAR LEADS

Application:

Designed for the secondary (high current) connection to automatic or hand-held metal arc welding electrodes. It is suitable
for flexible use under rugged conditions, on assembly lines and conveyor systems, in machine tool and automatically operated
line and spot welding machines.
Power:Earthing/return leads, power feeds to electrolytic plating process, Busbar connection, transformers, generators, aircraft
servicing equipments etc.

Constructure:
Conductor: High conductivity, bare annealed copper flexible conductor.
Sheath: Natural rubber, Horoprene rubber or other syntheitic rubber.

Model	Name	Working temperature
YH	Light model rubber sheath flexible cable	≤(℃)65
YHF	Horoprene rubber or other syntheitic sheath welding machine cable	≤(℃)65

Technical Data of DC Battery Cables
Popular Size	10mm,16mm,25mm,35mm,50mm
Gauge	8AWG, 6AWG, 4AWG, 2AWG, 1AWG
Conductor	99.7% Stranded Bare Copper
Insulation Material	PVC
Standard	GB/T 19666-2005, JB/T8734.2-2006
Rated Voltage	450V/750V
Diameter of Lug’s Aperture	M6,M8,M10
Temperature	70℃
Color	Black,Red
Length	20/30/40/50/60/80/100 cm and customized
Lug installation method	Crimping
Application	Used for connection of car battery, battery, inverter, etc.

AWG Size	Conductor Stranding	Nominal thickness sheath(in)	Overall Diameter (in)	Approx LBS/MFT
6	259/0.30mm	0.065	0.305	113
4	385/0.30mm	0.06	0.34	147
2	651/0.30mm	0.07	0.42	265
1	779/0.30mm	0.084	0.498	330
1/0	1026/0.30mm	0.085	0.525	405
2/0	1254/0.30mm	0.084	0.57	485
3/0	1615/0.30mm	0.093	0.635	620
4/0	2052/0.30mm	0.083	0.695	790
250	2451/0.30mm	0.148	0.875	1110
350	3432/0.30mm	0.137	0.96	1310
500	5054/0.30mm	0.16	1.2	1960
