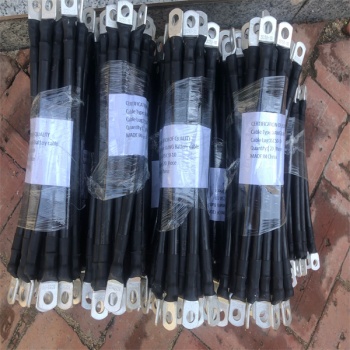

24Inch 0Gauge 3/8inch Auto Truck Heavy Duty Battery Connection Terminal Cable

Product Name:

24Inch 0Gauge 3/8inch Auto Truck Heavy Duty Battery Connection Terminal Cable

Number :

Product Description:

Application
battery cable is often used in main power applications in small cars, RV trailers, golf carts, and small marine crafts.
Also great for smaller solar cable applications.
Be aware that the total length of both the positive and negative cables have to be considered

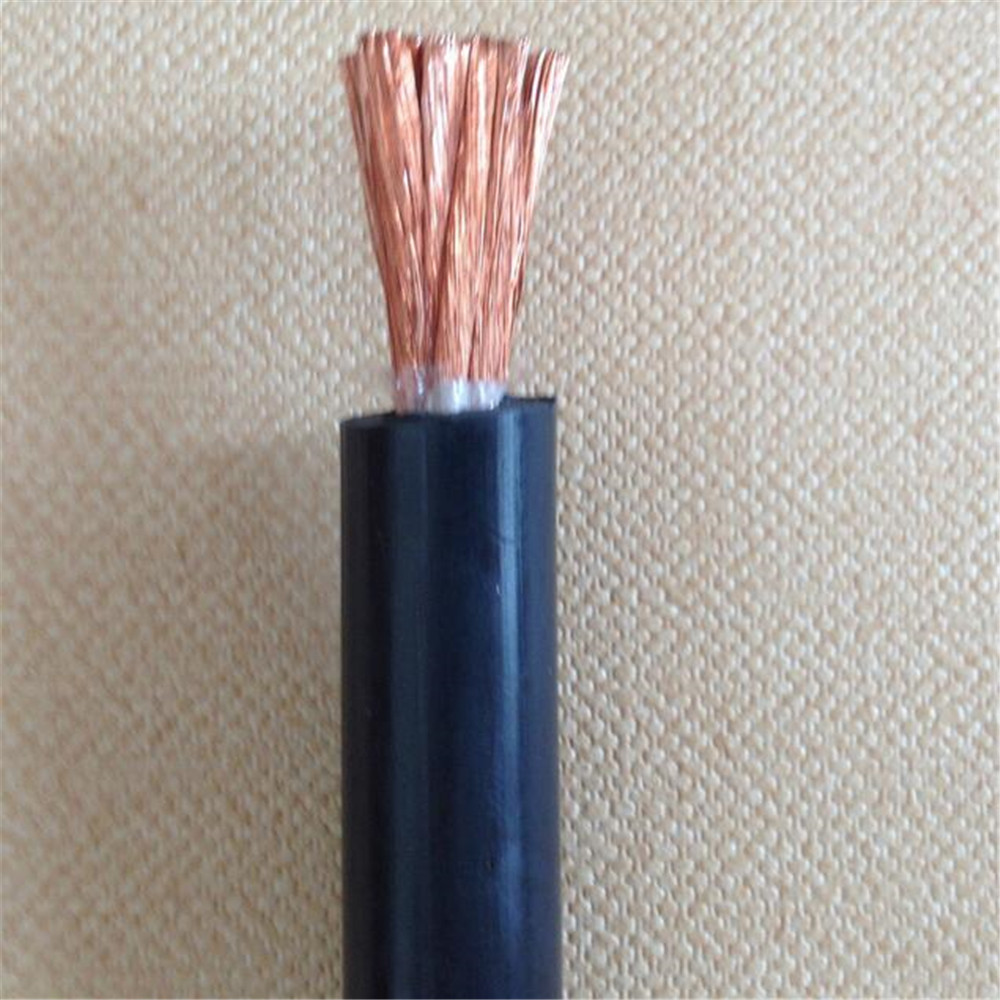

Construction
conductor: 99.9% pure copper strands wire
insulation: PVC
The average outside diameter of the cable is approximately 0.330 inches.
Rated for low voltage and battery use up to 60 volts DC and 25 Volts AC.
The internal copper stranded core is highly conductive maximizing current flow while still being highly flexible.

Technical Data of DC Battery Cables
Cable Type	BVR
Popular Size	10mm,16mm,25mm,35mm,50mm
Gauge	8AWG, 6AWG, 4AWG, 2AWG, 1AWG
Conductor	99.7% Stranded Bare Copper
Insulation Material	PVC
Standard	GB/T 19666-2005, JB/T8734.2-2006
Rated Voltage	450V/750V
Diameter of Lug’s Aperture	M6,M8,M10
Temperature	70℃
Color	Black,Red
Length	20/30/40/50/60/80/100 cm and customized
Lug installation method	Crimping
Application	Used for connection of car battery, battery, inverter, etc.

Recommended Length and Amperage for Battery Cable
Cable Size	50 Amps	100 Amps	150 Amps	200 Amps	300 Amps
6 Gauge (AWG)	11.8 ft	5.9 ft	4.4 ft	2.9 ft	2.2 ft
4 Gauge (AWG)	18.8 ft	9.4 ft	6.3 ft	4.7 ft	3.1 ft
2 Gauge (AWG)	29.8 ft	14.9 ft	9.9 ft	7.4 ft	4.9 ft
1 Gauge (AWG)	37.7 ft	18.9 ft	12.6 ft	9.4 ft	6.3 ft
1/0 Gauge (AWG)	47.5 ft	23.8 ft	15.9 ft	11.9 ft	7.9 ft
2/0 Gauge (AWG)	60 ft	30 ft	20 ft	15 ft	10 ft
3/0 Gauge (AWG)	75.6 ft	37.8 ft	25.2 ft	18.9 ft	12.6 ft
4/0 Gauge (AWG)	95.2 ft	47.6 ft	31.7 ft	23.8 ft	15.8 ft.
