Product Name:

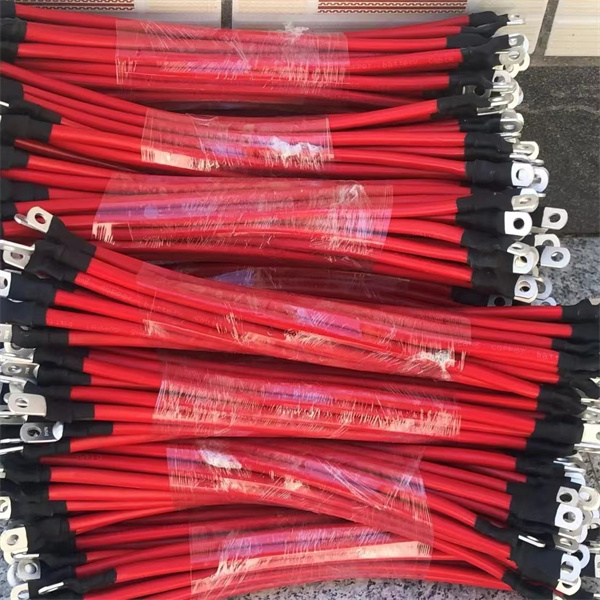

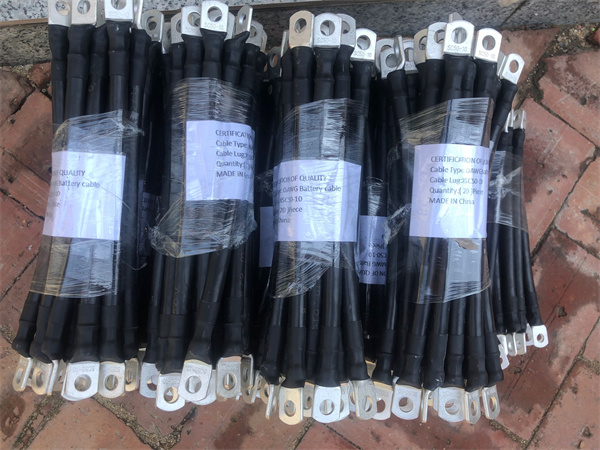

4 AWG Gauge Power Cable with Lugs Battery Engine Starter Ground Lead Car Auto
Number :
 |
2) Conductor Material: Bare Copper
3) AWG Size: Customized
4) Cable Length: Customized
5) Battery Cable End: Cable lug, top post, battery terminal or customized.
6) Standard: UL758
7) Insulation:PVC
8) Insulation Color: Black, Red, Yellow etc.
9) Feature: Acid-proof, long lifespan, flexible,Anti-aging, high or low temperature resistance, high voltage resistance
| Technical Data of DC Battery Cables | |
| Popular Size | 10mm,16mm,25mm,35mm,50mm |
| Gauge | 8AWG, 6AWG, 4AWG, 2AWG, 1AWG |
| Conductor | 99.7% Stranded Bare Copper |
| Insulation Material | PVC， rubber |
| Standard | GB/T 19666-2005, JB/T8734.2-2006 |
| Rated Voltage | 450V/750V |
| Diameter of Lug’s Aperture | M6,M8,M10 |
| Temperature | 70degree;105degree |
| Color | Black,Red |
| Length | 20/30/40/50/60/80/100 cm and customized |
| Lug installation method | Crimping |
| Application | Used for connection of car battery, battery, inverter, etc. |
|
SGT Automotive Battery Cable |
|||||
|
AWG Size |
Conductor Stranding |
Nom. Insul. Thick. (in) |
Nom. O.D. (in) |
Approx LBS/MFT |
SAE Spec |
|
6 |
37/.0260 |
0.06 |
0.305 |
137 |
SAE J-1127 |
|
4 |
61/.0250 |
0.065 |
0.35 |
168 |
SAE J-1127 |
|
2 |
133/.0218 |
0.065 |
0.44 |
258 |
SAE J-1127 |
|
1 |
133/.0243 |
0.065 |
0.48 |
322 |
SAE J-1127 |
|
1/0 |
133/.0275 |
0.065 |
0.525 |
431 |
SAE J-1127 |
|
2/0 |
133/.0309 |
0.065 |
0.575 |
497 |
SAE J-1127 |
|
3/0 |
361/.0210 |
0.078 |
0.661 |
603 |
SAE J-1127 |
|
4/0 |
361/.0239 |
0.078 |
0.726 |
779 |
SAE J-1127 |
Noted:
Primary auto wire is designed for many different automotive environments and to endure the
harsh conditions of a variety of automotive applications. Allied's automotive wiring ranges from
commercial to recreational vehicles.
