Product Name:

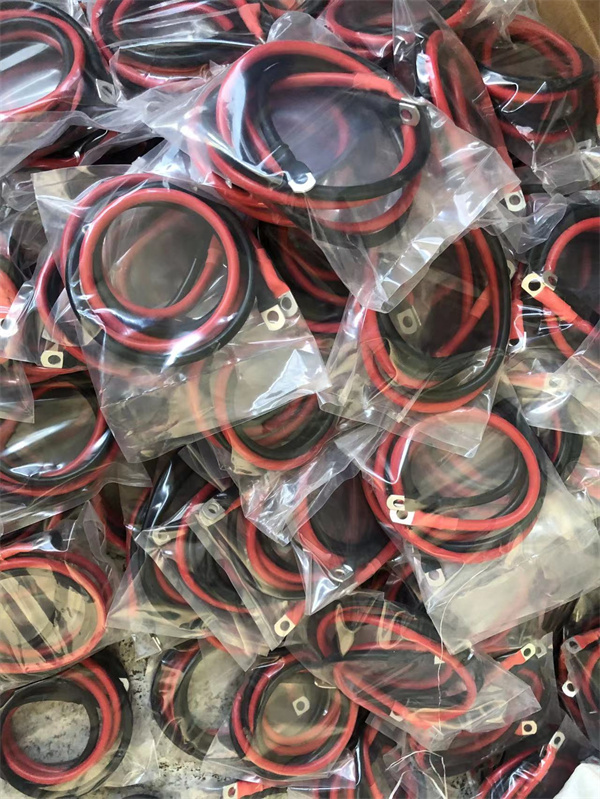

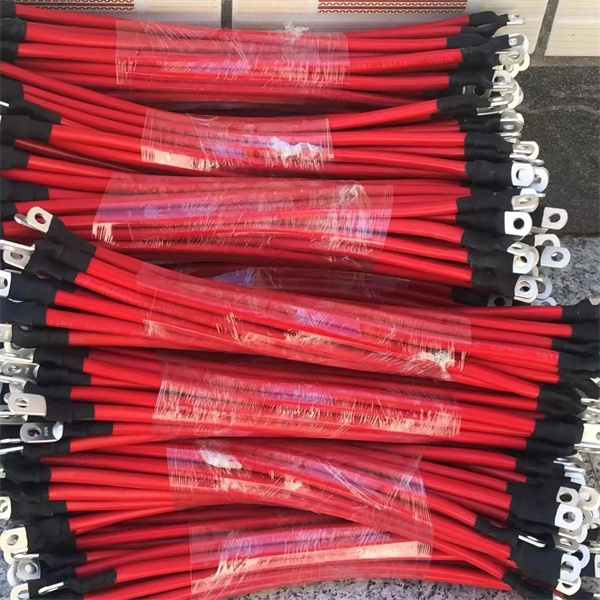

25 35 50 70 mm2 Battery Soft Connecting Cable for electric fork-lift truck
Number :
 |
2.Insulation Material: PVC
3.Maximum Voltage: 450/750 VDC
4.Cable Length: 30CM,60CM,100CM or customized
5.Sectional area:1x16mm2 or customized
6.Ring Terminal:Fits 3/8 inch bolt (M10),5/16 inch bolt(M8) etc
7.Operating Temperature: -50°C to 105°C
8.Standards: RoHS,UL,ISO9001
|
Insulation color |
|
|
Red,black |
|
Terminal material |
Copper with tin plated |
|
Usage |
Marine, Car, Truck, RV, Solar |
|
Wire Size |
Customized |
|
Wire length |
Customized |
|
Samples |
Free |
·
Features:
· Rated 600 Volts Max with 105C Dry and 75C Wet (BC-5W2) temperature ratings and will remain flexible in extreme cold weather
· Jacket and insulation are resistant to oil, gas, fungus, salt water, battery acid, heat, abrasion and sunlight
· Multiple ratings including - BOAT CABLE (UL1426), THW (building wire), MTW (machine tool wire), AWM (Appliance Wiring Material) and CSA TEW.
| Size of Battery DC Cables | ||||||
| Size | Conductor Constuction | Cable OD | Resistance at 20℃ | Rated Current at 30℃ | Rated Voltage | Weight of 100m |
| mm2 | No. of strand mm | mm | Ω/Km | A | V | kg |
| 1×1.5 | 13×0.41 | 3.2 | 12.1 | 24 | 450/750 | 2 |
| 1×2.5 | 19×0.41 | 4.1 | 7.41 | 32 | 450/750 | 3.05 |
| 1×4.0 | 19×0.52 | 4.8 | 4.61 | 42 | 450/750 | 4.6 |
| 1×6.0 | 19×0.64 | 5.3 | 3.08 | 55 | 450/750 | 6.7 |
| 1×10 | 49×0.52 | 6.8 | 1.83 | 75 | 450/750 | 12.9 |
| 1×16 | 49×0.64 | 8.1 | 1.15 | 105 | 450/750 | 18.6 |
| 1×25 | 98×0.58 | 10.2 | 0.727 | 138 | 450/750 | 30.6 |
| 1×35 | 212×0.45 | 11.7 | 0.524 | 170 | 450/750 | 37.1 |
| 1×50 | 304×0.45 | 13.9 | 0.387 | 215 | 450/750 | 54 |
| 1×75 | 189×0.68 | 16 | 0.268 | 265 | 450/750 | 82.4 |
Services & Advantages
1.OEM / ODM
2. Enough stock to meet fast delivery.
3. 2 year's quality guarantee.
4. Alibaba trade assurance.
5. Form E, FTA,C/O is available.
6. Good after-sale service team to solve problems until customer received goods well
7. Inspect every product before delivery
8. Welcome to visit our factory
