Product Name:

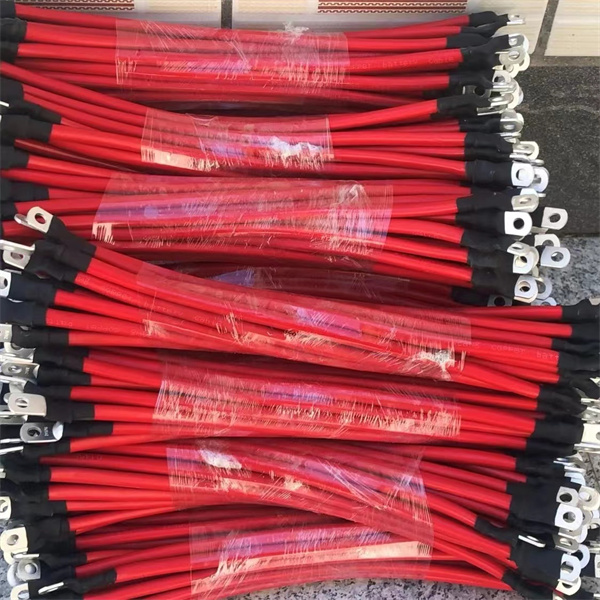

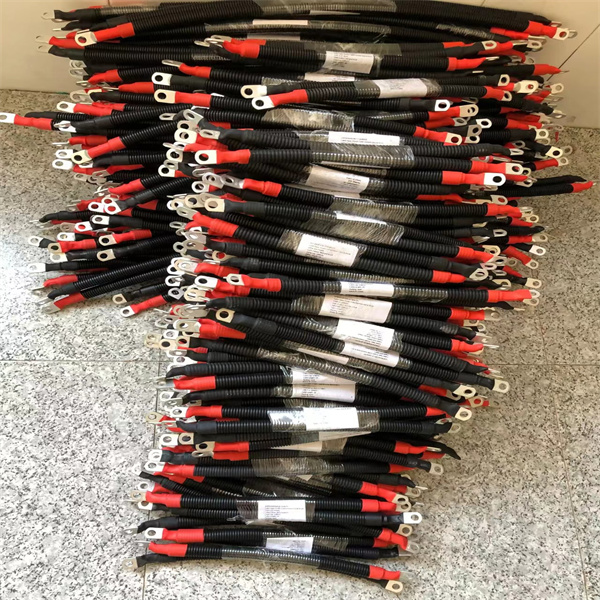

4 Gauge 19Ft Top Post copper battery cable
Number :
 |
Technical Data of DC Battery Cables
Cable Type
BVR
Popular Size
10mm,16mm,25mm,35mm,50mm
Gauge
8AWG, 6AWG, 4AWG, 2AWG, 1AWG
Conductor
99.7% Stranded Bare Copper
Insulation Material
PVC
Standard
GB/T 19666-2005, JB/T8734.2-2006
Rated Voltage
450V/750V
Diameter of Lug’s Aperture
M6,M8,M10
Temperature
70℃
Color
Black,Red
Length
20/30/40/50/60/80/100 cm and customized
Lug installation method
Crimping
Application
Used for connection of car battery, battery, inverter, etc.
Size of Battery DC Cables
Size
Conductor Constuction
Cable OD
Resistance at 20℃
Rated Current at 30℃
Rated Voltage
Weight of 100m
mm2
No. of strand mm
mm
Ω/Km
A
V
kg
1×1.5
13×0.41
3.2
12.1
24
450/750
2
1×2.5
19×0.41
4.1
7.41
32
450/750
3.05
1×4.0
19×0.52
4.8
4.61
42
450/750
4.6
1×6.0
19×0.64
5.3
3.08
55
450/750
6.7
1×10
49×0.52
6.8
1.83
75
450/750
12.9
1×16
49×0.64
8.1
1.15
105
450/750
18.6
1×25
98×0.58
10.2
0.727
138
450/750
30.6
1×35
212×0.45
11.7
0.524
170
450/750
37.1
1×50
304×0.45
13.9
0.387
215
450/750
54
1×75
189×0.68
16
0.268
265
450/750
82.4
