Product Name:

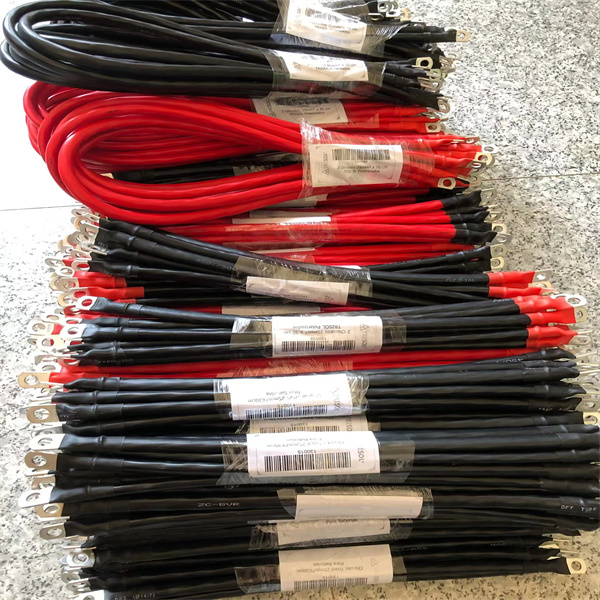

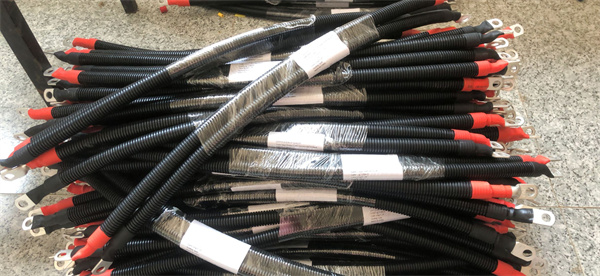

Silicone Cable For Electric Automobile Battery High Flexible Connecting Wire
Number :
 |
| Technical Data of DC Battery Cables | |
| Popular Size | 10mm,16mm,25mm,35mm,50mm |
| Gauge | 8AWG, 6AWG, 4AWG, 2AWG, 1AWG |
| Conductor | 99.7% Stranded Bare Copper |
| Insulation Material | PVC， rubber |
| Standard | GB/T 19666-2005, JB/T8734.2-2006 |
| Rated Voltage | 450V/750V |
| Diameter of Lug’s Aperture | M6,M8,M10 |
| Temperature | 70degree;105degree |
| Color | Black,Red |
| Length | 20/30/40/50/60/80/100 cm and customized |
| Lug installation method | Crimping |
| Application | Used for connection of car battery, battery, inverter, etc. |
Features:
Can be used for automotive starters or battery grounds where resistance to abrasion, heat and aging is needed.
Meets the requirements of SAE J-1127
SGX wire has a recommended temperature range of -40°C to +125°C
|
SGX Automotive Battery Cable/Primary Wire |
|
|
|||||
|
AWG Size |
Conductor Stranding |
Nom. Insul. Thick. (in) |
Nom. O.D. (in) |
Approx LBS/MFT |
SAE Spec |
|
6 |
133/0.0137 |
0.06 |
0.305 |
107 |
SAE J-1127 |
|
4 |
133/0.0170 |
0.065 |
0.375 |
153 |
SAE J-1127 |
|
2 |
133/0.0220 |
0.065 |
0.438 |
248 |
SAE J-1127 |
|
1 |
259/0.0177 |
0.065 |
0.48 |
308 |
SAE J1127 |
|
1/0 |
1026/0.010 |
0.065 |
0.525 |
383 |
SAE J-1127 |
|
2/0 |
1254/30 |
0.065 |
0.575 |
470 |
SAE J-1127 |
|
3/0 |
1615/30 |
0.078 |
0.654 |
589 |
SAE J-1127 |
|
4/0 |
2052/.0100 |
0.078 |
0.706 |
766 |
SAE J-1127 |
Noted:
Primary auto wire is designed for many different automotive environments and to endure the harsh conditions
of a variety of automotive applications. Allied's automotive wiring ranges from commercial to recreational vehicles.
